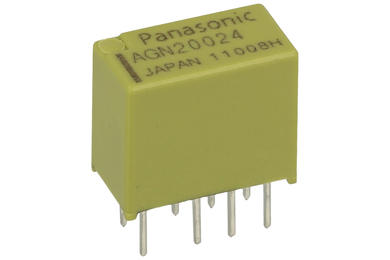

Relay; Panasonic Electric Works; AGN20024J; PCB trough hole; DPDT; 24V; 0,3A; 1A

Files to download
Datasheet

Relay; electromagnetic miniature; AGN20024J; 24V; DC; DPDT; 0,3A; 125V AC; 1A; 30V DC; PCB trough hole; Panasonic Electric Works; RoHS

Item ID: 41645

Quantity: 19 pc

MOQ: 1

Multiple: 1

Quantity [ pc ]	Net price PLN
1+	8,74
3+	7,28
5+	6,07
20+	5,51
100+	4,96

Quantity:

Details
Name	Relay
Type	electromagnetic miniature
Symbol	AGN20024J
Input voltage	24V
Input voltage type	DC
Contacts configuration	DPDT
Rated AC current	0,3A
Rated AC voltage	125V AC
Rated DC current	1A
Rated DC voltage	30V DC
Mounting way	PCB trough hole
Manufacturer	Panasonic Electric Works
Certificates	RoHS
Contact material	AgPd
Coil resistance	2504Ohm
Rated coil power DC	230mW
