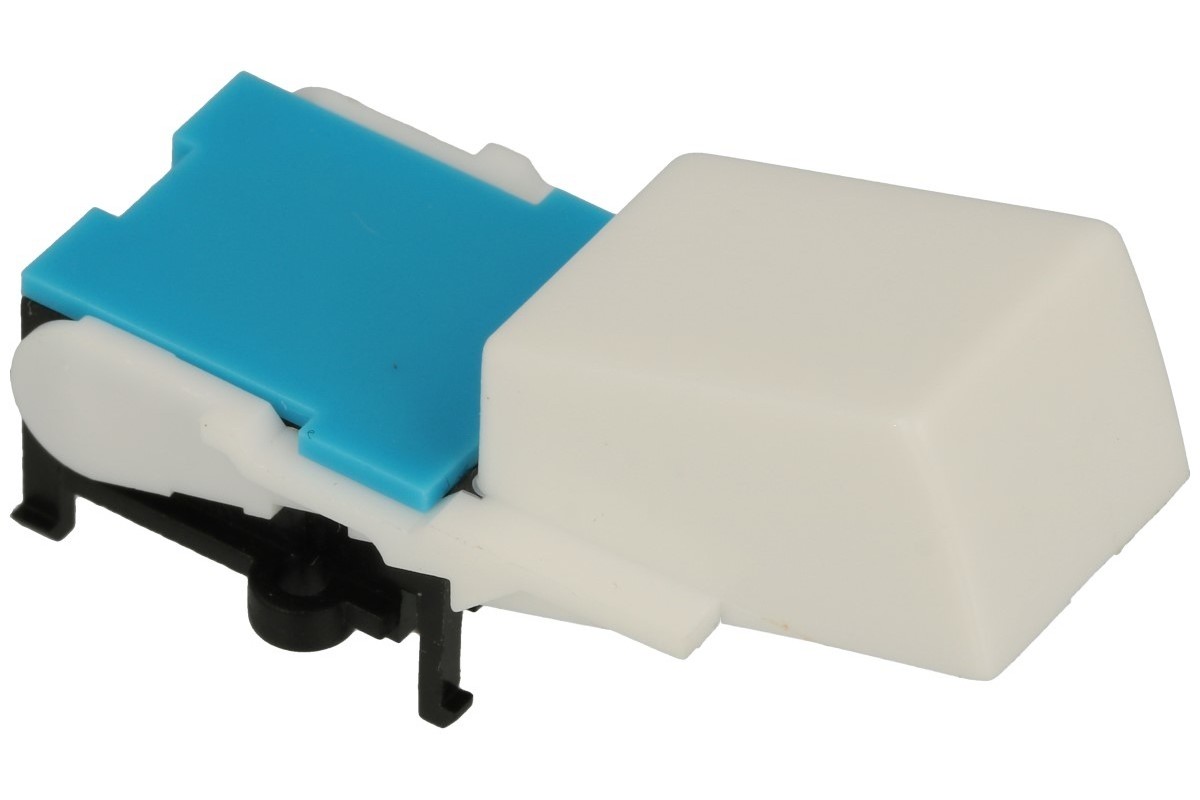

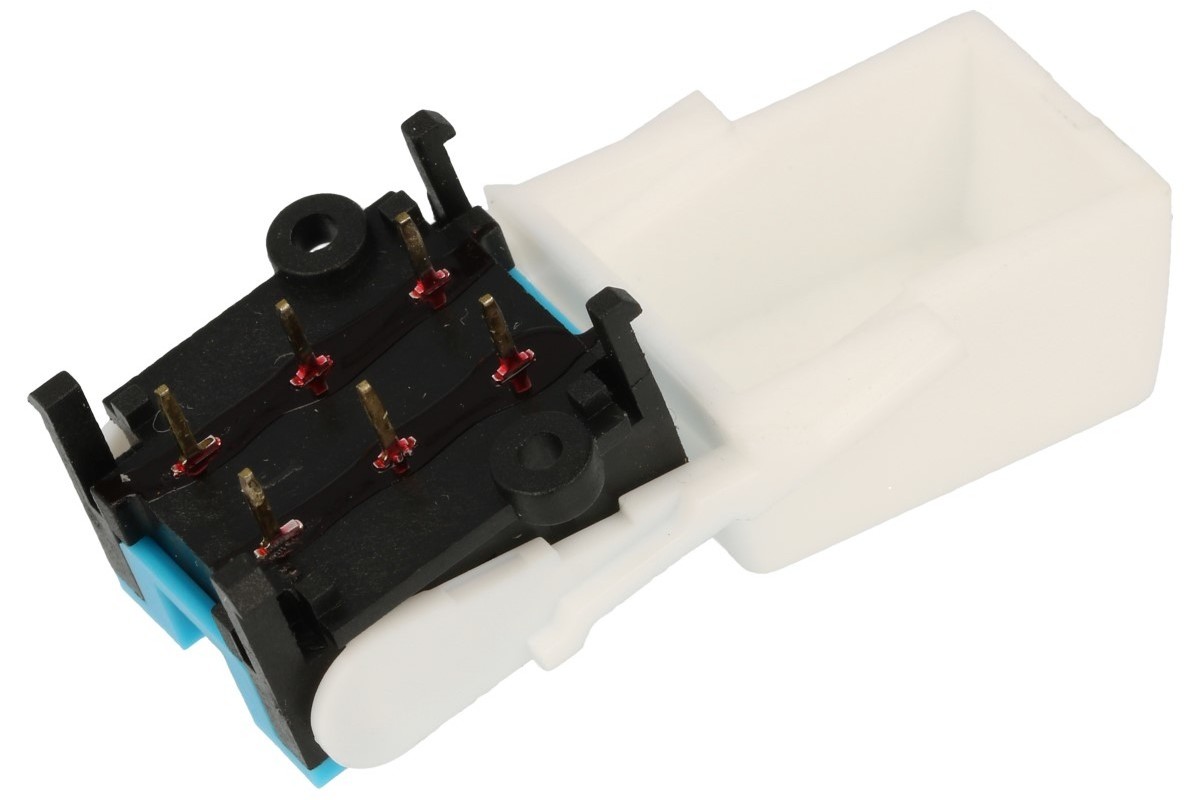

Microswitch; EEC; HS-22L02

Files to download
Drawing

Microswitch; HS-22L02; lever; 33,3mm; 2NO+2NC common pin; slow action; trough hole; 0,1A; 12V; EEC; RoHS

Item ID: 25031

Quantity: 0 pc

MOQ: 3

Multiple: 1

Quantity [ pc ]	Net price PLN
3+	0,98
10+	0,78
25+	0,62
50+	0,59
100+	0,56
500+	0,54

The product is no longer available. It can no longer be ordered. Maybe you can find something interesting in its group?

Info
The item is available only until stocks last.

Details
Name	Microswitch
Symbol	HS-22L02
Actuator type	lever
Lever length / Pin plunger height	33,3mm
Output configuration	2NO+2NC common pin
Switching way	slow action
Switch mounting	trough hole
Cable mounting	not applicable
Contact current	0,1A
Switching voltage	12V
Body dimmensions	36,5x17,1x9,9mm
IP rating	unspecified
Manufacturer	EEC
Certificates	RoHS

Substitutes or similar items

Switch; push button; HM-HS-22L02; ON-(ON)+ON-(ON); white; no backlight; solder; 2 positions; 0,1A; 0,1A; 30V DC

Switch; push button; HM-HS-22L02; ON-(ON)+ON-(ON); white; no backlight; solder; 2 positions; 0,1A; 0,1A; 30V DC
Item ID		35199
	Quantity [ pc ]	305
