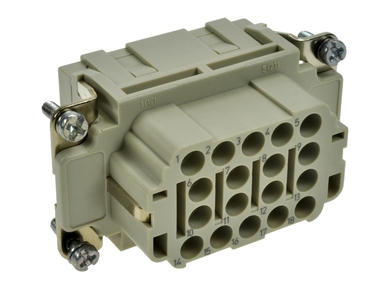

Socket; Han EE; Harting; 09320183101; 18 ways

Files to download
Datasheet

Socket; Han EE; 09320183101; 18 ways; 10B; polycarbonate; straight; crimped; 16A; 500V; grey; 0,14÷4mm2; Harting; RoHS

Item ID: 29411

Quantity: 20 pc

MOQ: 1

Multiple: 1

Quantity [ pc ]	Net price PLN
1+	72,15
3+	64,42
5+	60,76
10+	57,11
15+	53,45

Quantity:

Info
Terminals must be ordered separately.

Details
Name	Socket
Connector type	Han EE
Symbol	09320183101
Number of ways / pins	18 ways
Industrial connector size / version	10B
Connector body material	polycarbonate
Connector orientation	straight
Connector mounting	not applicable
Electrical instalation	crimped
Industrial connectors features	not applicable
Rated current	16A
Rated voltage	500V
Body / insulator color	grey
Contact plating	unspecified
Wire range	0,14÷4mm2
IP rating	unspecified
Manufacturer	Harting
Certificates	RoHS
