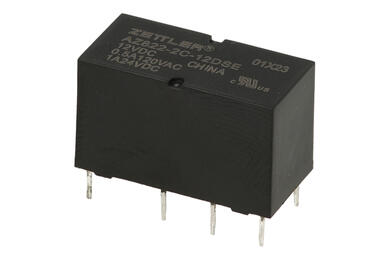

Relay; Zettler; AZ822-2C-12DSE; PCB trough hole; DPDT; 12V; 0,5A; 1A

Files to download
PDF

Relay; electromagnetic miniature; AZ822-2C-12DSE; 12V; DC; DPDT; 0,5A; 120V AC; 1A; 24V DC; PCB trough hole; Zettler; RoHS

Item ID: 04871

Quantity: 134 pc

MOQ: 1

Multiple: 1

Quantity [ pc ]	Net price PLN
1+	6,16
3+	4,93
5+	3,94
20+	3,69
100+	3,44

Quantity:

Info
Dimensions: 20 x 9.8 x 12 mm

Details
Name	Relay
Type	electromagnetic miniature
Symbol	AZ822-2C-12DSE
Input voltage	12V
Input voltage type	DC
Contacts configuration	DPDT
Rated AC current	0,5A
Rated AC voltage	120V AC
Rated DC current	1A
Rated DC voltage	24V DC
Mounting way	PCB trough hole
Manufacturer	Zettler
Certificates	RoHS
Coil resistance	960Ohm
Rated coil power DC	74mW

Substitutes or similar items

Relay; electromagnetic miniature; HFD27-012-S (JRC27F); 12V; DC; DPDT; 1A; 125V AC; 2A; 30V DC; PCB trough hole; Hongfa; RoHS

Relay; electromagnetic miniature; HFD27-012-S (JRC27F); 12V; DC; DPDT; 1A; 125V AC; 2A; 30V DC; PCB trough hole; Hongfa; RoHS
Item ID		08307
	Quantity [ pc ]	1169
