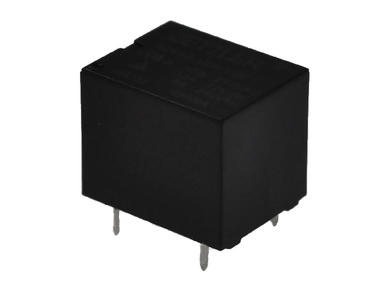

Relay; Zettler; AZ943-1CH-5DE; PCB trough hole; SPDT; 5V; 10A; 10A

Files to download
Datasheet

Relay; electromagnetic miniature; AZ943-1CH-5DE; 5V; DC; SPDT; 10A; 277V AC; 10A; 30V DC; PCB trough hole; Zettler; RoHS

Item ID: 25882

Quantity: 83 pc

MOQ: 1

Multiple: 1

Quantity [ pc ]	Net price PLN
1+	4,08
3+	3,26
10+	2,61
20+	2,40
100+	2,19

Quantity:

Details
Name	Relay
Type	electromagnetic miniature
Symbol	AZ943-1CH-5DE
Input voltage	5V
Input voltage type	DC
Contacts configuration	SPDT
Rated AC current	10A
Rated AC voltage	277V AC
Rated DC current	10A
Rated DC voltage	30V DC
Mounting way	PCB trough hole
Manufacturer	Zettler
Certificates	RoHS
Coil resistance	70Ohm
Rated coil power DC	360mW

Substitutes or similar items

Relay; electromagnetic miniature; HF3FF-005-1ZS (JQC); 5V; DC; SPDT; 10A; 277V AC; 10A; 28V DC; PCB trough hole; Hongfa; RoHS

Relay; electromagnetic miniature; HF3FF-005-1ZS (JQC); 5V; DC; SPDT; 10A; 277V AC; 10A; 28V DC; PCB trough hole; Hongfa; RoHS
Item ID		06480
	Quantity [ pc ]	113

Relay; electromagnetic miniature; NT73-2CS12-5; 5V; DC; SPDT; 10A; 125V AC; 10A; 28V DC; PCB trough hole; Forward Relays; RoHS

Relay; electromagnetic miniature; NT73-2CS12-5; 5V; DC; SPDT; 10A; 125V AC; 10A; 28V DC; PCB trough hole; Forward Relays; RoHS
Item ID		21994
	Quantity [ pc ]	118
